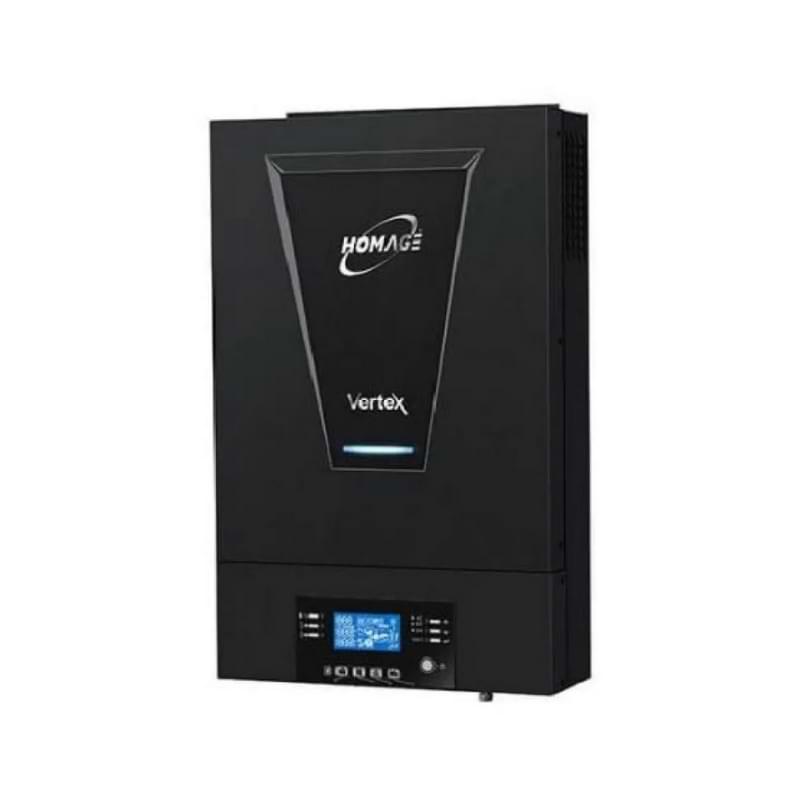

Homage HVS-5015SCC (3500 Watt) Vertex Series Solar Inverter UPS

Homage HVS-5015SCC (3500 Watt) Vertex Series Solar Inverter UPS, designed for reliable solar energy utilization. With a pure sine wave solar inverter and output power factor of 1, it ensures efficient power conversion. Its unique ventilation design and built-in dust filter enhance durability in harsh environments. Offering configurable output source priority via LCD settings and battery equalization function for optimized performance.

Product Details:

Type	Solar Inverter UPS
Power	3500 Watt
Input Voltage	24VDC
Output Voltage	230VAC
Waveform	Pure Sine Wave
Built-in Dust Filter	Yes
Output Power Factor	1
Battery Independent Design	Yes
Output Source Priority	Configurable via LCD setting
Battery Equalization	Yes
Max Solar Charger Current	80A
Max Solar Voltage (VOC)	500VDC
MPPT Voltage Range	120-450VDC
Max Solar Input Current	27A



Utility of Homage HVS-5015SCC (3500 Watt) Solar Inverter UPS

24 Tube Lights or 40 Energy Savers or 80 LED Bulbs, 20 Fans, 2 LED TV, 1 Refrigerator (12 Cuft), 1 DC Inverter Split AC & 1 Washing Machine.
